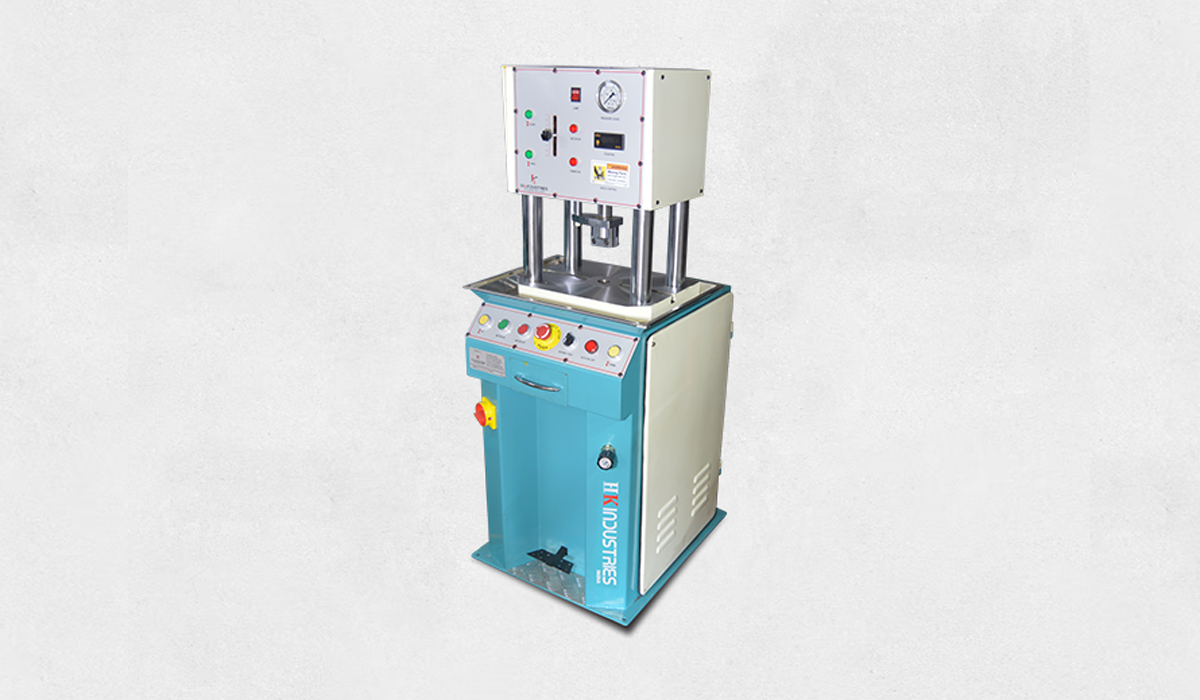

This Hydraulic Progressive Die Cutting & Embossing Press is specially designed for jewellery progressive design production, enabling cutting and embossing together in a single die operation. It is an ideal solution for manufacturers seeking high-speed production with consistent quality in complex jewellery components.
The machine supports high-speed die cutting, ensuring faster production cycles and improved efficiency. Equipped with a counting system, low-level micro pressure setter, and easy stroke adjustment, it allows precise control over cutting and embossing operations. The die fitting adjustment system with an easy deposit drawer simplifies die handling, while cutting adjustments further enhance production speed and accuracy.
Built with a compact yet sturdy hydraulic structure, this press delivers reliable performance for continuous jewellery manufacturing applications.
Key Features
- Progressive die system for cutting & embossing in a single operation
- High-speed die cutting for faster production
- Counting system for production monitoring
- Low-level micro pressure setter for precise control
- Easy stroke adjustment
- Die fitting adjustment system with easy deposit drawer
- Cutting adjustment for improved productivity
Specification Data
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Progressive Die Cutting & Embossing Press |
| Application | Jewellery Progressive Design Production |
| Max. Working Thrust | 5 Tons |
| Max. Working Pressure | 150 Bar |
| Useful Stroke | 80 mm |
| Working Speed | 20 – 25 / min |
| Bolster Plate Size | 400 × 300 mm |
| Electric Motor | 3 HP |
| Oil Tank Capacity | 20 Litres |
| Control Features | Micro Pressure Setter |
| Production Monitoring | Counting System |
| Construction | Compact Heavy-Duty Design |
| Machine Weight | Approx. 260 Kgs |
| Duty Cycle | Continuous Operation |
