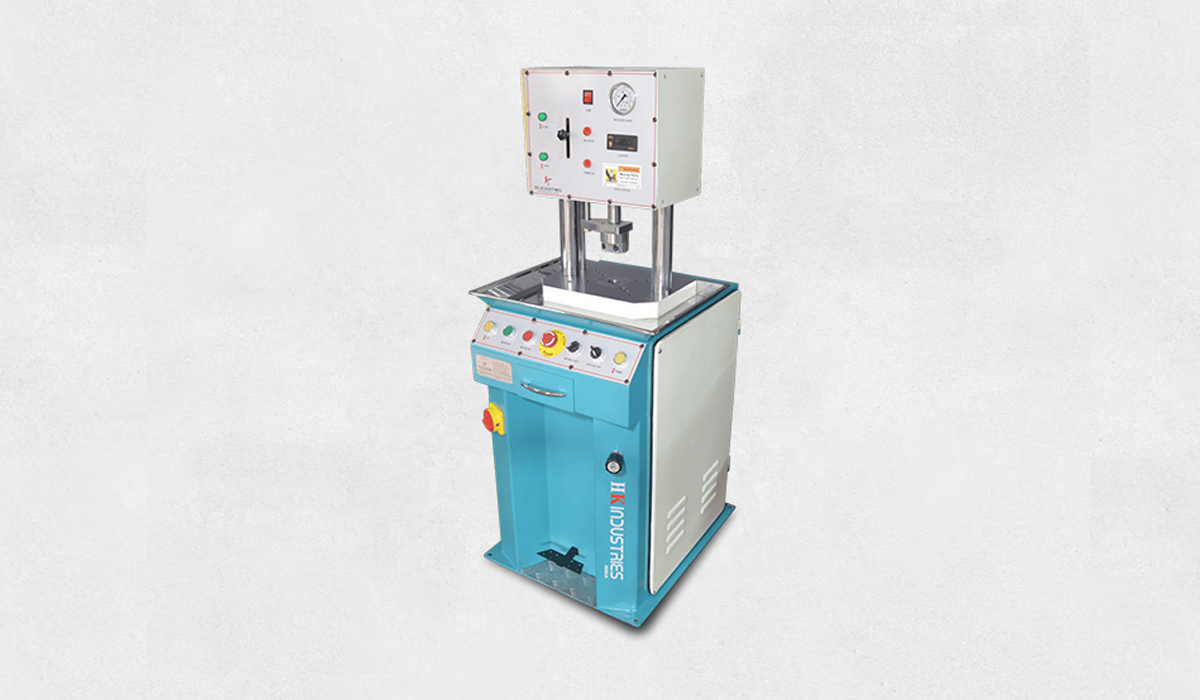

The Hydraulic Progressive Die Cutting & Embossing Press - 3 Tons is designed for jewellery progressive design production, allowing cutting and embossing in a single die operation. This compact machine is ideal for light-duty and high-precision jewellery components, offering consistent quality with efficient production speed.
Built for smooth and reliable performance, the press supports high-speed die cutting, making it suitable for small to medium-scale jewellery manufacturing. Its compact hydraulic system ensures precise pressure control, stable operation, and low maintenance.
Key Features

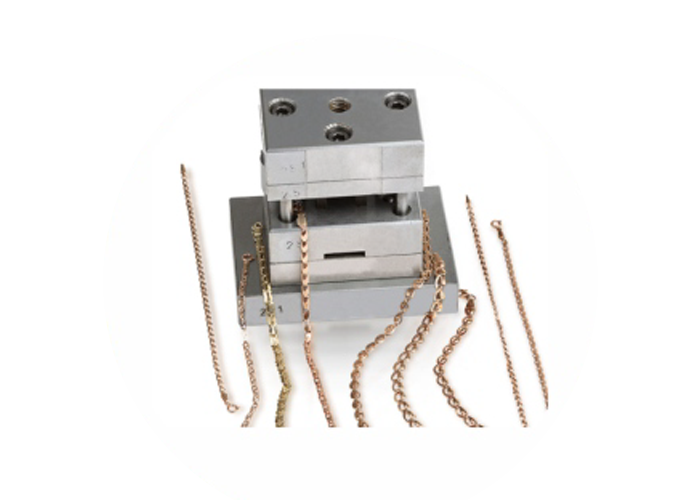

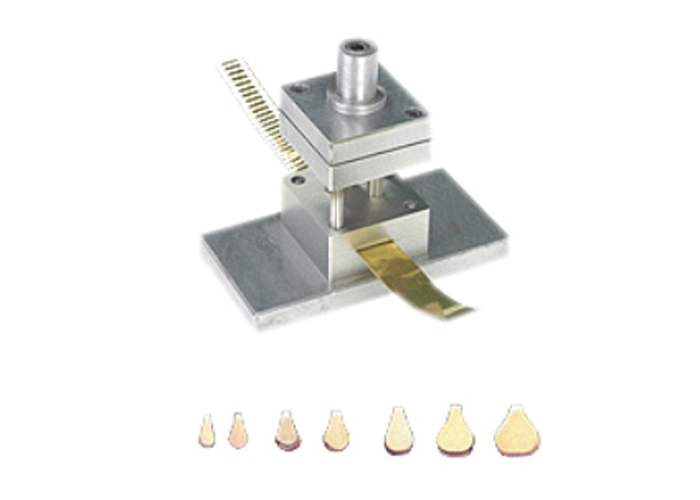

- Progressive die system for cutting & embossing in one operation
- High-speed die cutting for efficient production
- Compact and space-saving design
- Smooth and stable hydraulic operation
- Suitable for intricate jewellery components
Specification Data
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Progressive Die Cutting & Embossing Press |
| Application | Jewellery Progressive Design Production |
| Max. Working Thrust | 3 Tons |
| Max. Working Pressure | 150 Bar |
| Useful Stroke | 80 mm |
| Working Speed | 25 – 30 / min |
| Bolster Plate Size | 255 × 350 mm |
| Electric Motor | 2 HP |
| Oil Tank Capacity | 20 Litres |
| Construction | Compact Heavy-Duty Design |
| Machine Weight | Approx. 215 Kgs |
| Duty Cycle | Continuous Operation |
